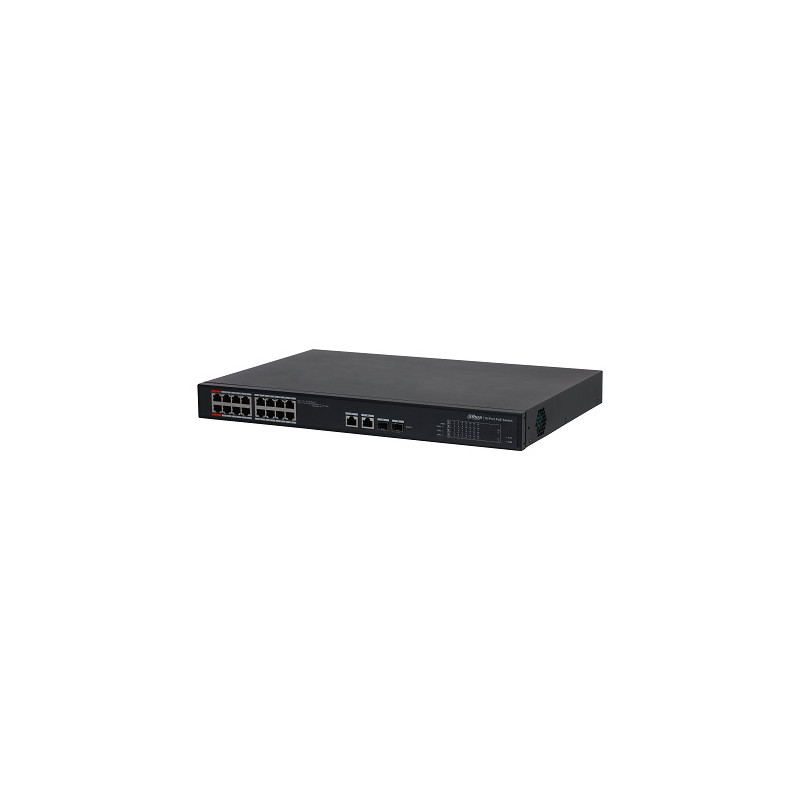

PoE šakotuvas 100Mbps 16portu+2G uplink + 2SFP, ePoE 8 portai, ePoE iki 800m, Hi-PoE

PoE šakotuvas 100Mbps 16portu+2G uplink + 2SFP, ePoE 8 portai, ePoE iki 800m, Hi-PoE

359,38 €
Nėra mokesčio

Overview:

Cloud Managed Switch is a layer-2 commercial switch that has a long-distance PoE function. It can supply power to devices up to 250 meters away. The PoE red port supplies up to 90W. The Switch can be managed through the DoLynk Care app, allowing you access to the network topology diagram function, which can be used to quickly identify issues. The DoLynk Care app is developed based on DoLynk Care Cloud Server. The Switch is applicable for use in a wide variety of scenarios, such as in homes, factories and offices.

Functions:

Supports LLDP protocol and automatically generating the network topology to quickly identify issues.
Cloud Management: You can operate and maintain the switch on the app of the mobile terminal, greatly reducing the cost of operation and maintenance.
The transmission distance of a PoE port can be up to 250 m, meeting the requirement of wired transmission (bandwidth reduced to 10Mbps).
· Supports visualized management and remote maintenance.
· Supports automatic network topology generation.
· 250 m long-distance power supply.
· 8-pin PoE offers better compatibility and reduces cable loss.
· PoE watchdog monitors the status of terminals in real-time.
· Supports the power management policy.
Red Port 90W: The red ports support IEEE802.3af, IEEE802.3at, IEEE802.3bt and Hi-PoE standards, with a maximum output power consumption of 90W per port. Suitable for powering high-power devices.
PoE Watchdog: It enables the switch to automatically detect port status and restart the failed ports to recover connection in case of IPC connection exception. This enables intelligent operation and maintenance management in its true sense and effectively reduces manual maintenance costs.

Technical Specification:

Included Power Adapter: Yes
PoE: Yes
Ethernet Port: 16
Ethernet Port Speed 10/100 Mbps
Optical Port Uplink Speed: 1 Gbps
Description of Function Slots: Port 1–16: 16 × RJ–45 10/100 Mbps; Port 17-18: 2 × 10M/100M/1000M Base-T (uplink)(combo); Port 17-18: 2 × 1000M SFP (uplink)(combo)
Power Supply: 100–240 VAC, 50/60 Hz, 2 A
Operating Temperature: –10 °C to +55 °C
Operating Humidity: 5%–95% (RH), non-condensing
Storage Temperature –40 °C to +70 °C
Storage Humidity 5%–95% (RH), non-condensing
Power Consumption Idling: <5 W,Full: 240 W
Smart Managed Switch: Yes
MTBF: 371,069 h
Switching Capacity: 7.2 Gbps
Packet Forwarding Rate: 5.36 Mpps
Packet Buffer Size: 4 Mbit
MAC Table Size: 16K
PoE Protocol: IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt
PoE Power: Port 1–2 <90 W; Port 3–16 <30 W; Total <240 W
PoE Power Consumption Management: Yes
PoE Pin Assignment: 1, 2, 4, 5 (V+), 3, 6, 7, 8(V–)
Long Distance PoE Transmission: Yes
Statics Protection: Air discharge: 8 kV; Contact discharge: 6 kV
Lighting Protection: Common mode: 4 kV; Differential mode: 2 kV
Weight: 3.20 kg
Product Dimensions: 440 mm × 300 mm × 44 mm
Certifications CE; FCC

Transmission Performance:
Switch power supply voltage 53V.
CAT5E/CAT6. Max. DC resistance < 10ohm/100m
Cable(m) Load Capacity(W) Bandwidth(Mbps)
IEEE802.3bt 90W:
100m Cable; 71.3W Load Capacity; 100Mbps Bandwidth.
150m Cable; 62W Load Capacity; 10Mbps Bandwidth.
200m Cable; 51W Load Capacity; 10Mbps Bandwidth.
250m Cable; 40W Load Capacity; 10Mbps Bandwidth.
Hi-PoE 60W:
100m Cable; 53W Load Capacity; 100Mbps Bandwidth.
150m Cable; 50W Load Capacity; 10Mbps Bandwidth.
200m Cable; 47W Load Capacity; 10Mbps Bandwidth.
250m Cable; 37W Load Capacity; 10Mbps Bandwidth.
IEEE802.3at 30W:
100m Cable; 25.5W Load Capacity; 100Mbps Bandwidth.
150m Cable; 25.5WLoad Capacity; 10Mbps Bandwidth.
200m Cable; 25.5WLoad Capacity; 10Mbps Bandwidth.
250m Cable; 25.5WLoad Capacity; 10Mbps Bandwidth.

Note: The actual transmission distance may vary due to power consumption of connected devices or the cable type and status.

DAHUA TECHNOLOGY CO., LTD
4101-16ET240
